Sophisticated Earthquake Technology in Buildings

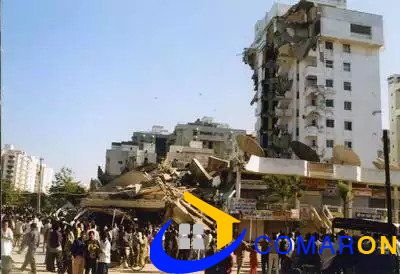

• Every year, earthquakes inflict serious implications in India. Ground rupture, ground shaking, tsunamis, landslides, harm to buildings and liquefaction are a few of them. As far as the repercussions to buildings are concerned, when fault breaks, seismic waves are circulated in all directions, sourcing the ground to vibrate at frequencies fluctuating from around 0.1 to 30 Hertz. Buildings vibrate as a result of the ground shaking; damage happens if the building cannot endure these vibrations.

• The inertia of the building (it wishes to stay at rest) can reason shearing of the building which can focus stresses on the weak walls or joints in the building resulting in failure or possibly total collapse. The kind of shaking and the frequency of shaking depend on the building.

Types of House Construction in India

Methods For Earthquake Resistant Design of Buildings

• There are numerous known and practiced dealings to defend against seismic threats. Let’s take a look at these Earthquake Resistant Techniques employed by the specialists to curtail the damage to structures because of earthquakes:

Floating Foundation:

• The ascending or floating foundation splits the substructure of a house from its superstructure.

• One mode of doing this is by floating a structure above its foundation on lead-rubber bearings which comprise a solid lead core enclosed in alternating coatings of rubber as well as steel. The bearings are fastened to the building along with its foundation thru the assistance of steel plates. Thus, when an earthquake comes about, the floating foundation can transfer without moving the building above it.

• In the Japan country, this base isolation system works at a complete new level. Their design lets buildings to float mid-air. The system soars, keeping the building on a pillow of air. The system contains in-built sensors for recognition of seismic activity and these sensors interconnect with the air compressor that generates the layer of air between the buildings in addition to its base.

Shock Absorption:

• Related to the shock absorbers applied in vehicles, buildings also employ this technology. The Earthquake Resistant Equipment helps buildings slow down and decreases the magnitude of vibratory motions. Preferably shock absorbers should be positioned at each level of the building – one end connected to the beam as well as the other end to the column. Each includes a piston head that moves within a cylinder full of silicone oil. Throughout earthquakes, the horizontal nod of building will create the piston push against the oil, converting mechanical energy from the seismic wave to heat.

Rocking Core-Wall:

• Contemporary high-rise buildings make use of this technique to expand seismic resistance at a low price. To make this work, a secure concrete core is fixed through the heart of the structure, enclosed by elevator banks. Countless modern high-rise buildings make use of this technique to raise seismic resistance in a reasonable way. It works most successfully when used together thru base isolation. For base isolation, elastomeric bearings are erected with interchanging layers of steel along with natural rubber/neoprene. The bearing therefore created has low horizontal rigidity and vertical firmness. The combination is vastly effective, cost-friendly and easy to instrument.

Pendulum Power:

• The pendulum power method works by suspending a gigantic mass near the top of the building. This mass is maintained by steel cables as well as viscous fluid dampers are located between the mass and the building that it defends. In case of any seismic motion, the pendulum passages in the opposite direction to poise the energy. Each of the pendulums is adjusted to sync with the natural frequency of the building and these systems are recognized as tuned mass dampers. Their objective is to counter resonance and diminish the structure’s dynamic reaction.

Symmetry, Diaphragms and Cross-Bracing:

• Commonly one general criterion for seismic designs is symmetry. Seismic threats of asymmetrical designs are greater. L-Shaped, T-Shaped and split-level buildings may be more visually attractive but they are also prone to torsion. Accordingly engineers design symmetrical buildings to keep the forces likewise distributed through the building and limit ornamental elements similar to cornices, cantilever projections etc.

• An earthquake has a substantial lateral force. Seismic designing neutralizes these forces in both horizontal as well as vertical structural systems. Diaphragms are vital to horizontal structures – for instance floors of a structure or roof. Engineers plan each diaphragm on its own deck and reinforce it horizontally so it can allocate sideways forces by way of vertical structure parts.

• Through vertical structures, engineers have numerous approaches. Braced frames are habitually used in building walls. These frames rely on trusses for resisting sideways movement. Cross-bracing is a technique which uses two diagonal members in an X-shape to shape wall trusses and it is a standard technique to build Earthquake Resistant Buildings.

• In conclusion

• Seismic Engineering is a very complex as well as constantly developing. Seismic structural valuation is a powerful instrument in Earthquake Engineering which uses thorough modelling of the building in conjunction with operational analysis to get an improved understanding of the edifice’s resistance. Retrofitting older buildings with improved designs or materials is as significant as rebuilding fresh structures from scratch. The final goal of Earthquake Civil Engineering is actually to save lives so that the buildings don’t breakdown and permit inhabitants to escape in a timely routine.
